How can I identify my carburettor?

For many of us it is not really simple to correctly identify the carburettor without having to remove it.

Often one can often find the answer by simply studying your car registration.

First of all you will need to look at what fuel is used by the car:

Diesel: your car was built after 1984 and has no carburettor but an dieselpump.
Petrol: your car has either a carburettor or a fuel injection system. The final answer will come further down the page. Please take a further look at your car registration and see where the engine size is described:

1397 cc. Continue with 1
1721 cc. Continue with 3
1986 cc. Continue with 2

1) 1397 cc; the B14 engine

The size of your engine is 1397 cc, what we describe as the B14 engine.
The car registration will also list the engine power.

If the power listed is 47 kW (64 hp) then your car will most likely have a Solex 32 SEIA carburettor.

Now have another look at your car registration and look at the last 6 numbers of your VIN (chassisnumber).

If your car has a chassisnumber between ch 610000 en 810500, then your car should have a Solex 32 SEIA REN 796.
If your car has a chassisnumber between ch 810501 en 120999, then your car should either have a Solex 32 SEIA REN 814 or a Solex 32 SEIA REN 828. You will have to take a look at the identification tag on your carburettor to make sure.

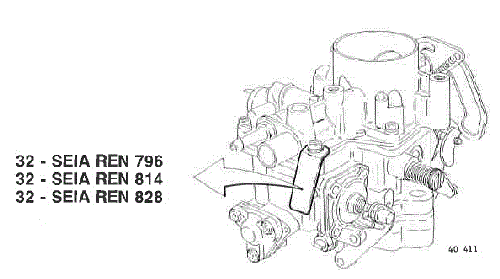

To be absolutely sure which carburettor is currently installed on your car you will have to open the bonnet and take a look at the metal tag that is attached to your carburettor. It may differ from what is supposed to be on your car as someone may have changed your carburettor previously.

If the power listed is 53 kW (71 hp) then your car will most likely have a Weber 32 DIR carburettor.

Now have another look at your car registration and look at the last 6 numbers of your VIN (chassisnumber).

Does your car have a chassis number between ch 300000 and 371340, and was it sold new in Sweden, then your car should be equipped with a Weber 32 DIR 48-6200 carburettor.
Does your car have a chassis number between ch 300000 and 371340, and was it sold new anywhere but in Sweden, then your car should be equipped with either a 32 DIR 57-8400 or a Weber 32 DIR 8401, depending on the country where it was sold new.
Does your car have a chassis number between ch 371341 and 379886, then your car should be equipped with a Weber 32 DIR 73-100.
Does your car have a chassis number between ch 379887 and 544999, then your car should be equipped with a Weber 32 DIR 83-100.
Does your car have a chassis number between ch 545000 and 810500, then your car should be equipped with a Weber 32 DIR 93-100.
Does your car have a chassis number between ch 810501 and 240999, then your car should be equipped with either a Weber 32 DIR 104-100, a Weber 32 DIR 104-101, or a Weber 32 DIR 105-100. This depends on the country where it was sold new.
Does your car have a chassis number after ch 241000 (1987), then your car should be equipped with either a Weber 32 DIR 109-100 , a Weber 32 DIR 109-101, or a Weber 32 DIR 110-100.This depends on the country where it was sold new.

To be absolutely sure which carburettor is currently installed on your car you will have to open the bonnet and take a look at the code stamped into the foot of the carburettor. It may differ from what is supposed to be on your car as someone may have changed your carburettor previously.

Back to the Solex 32 SEIA
the Weber 32 DIR
the homepage

1) 1986 cc; the B19 and B200 engine

The size of your engine is 1986 cc, what we describe as the B19 engine (is the chassis number is between ch 610000 (middle of 1981) and 999999 (middle of 1984)) or as the B200 engine (is the chassis number is between ch 000000 (middle of 1984) and ch 765000 (middle of 1989)).
The car registration will also list the engine power.

If the power listed is 70 kW (95 hp) then your car will most likely have a B19A from somewhere between 1982 and 1984 equipped with a Zenith Stromberg 175 CD-2 SE carburettor.

Now have another look at your car registration and look at the last 6 numbers of your VIN (chassisnumber).

Does your car have a chassis number between ch 545500 and ch 709999, and was it sold new anywhere but in Sweden, then your car should be equipped Zenith-Stromberg 175CD 2SE 4094.
Does your car have a chassis number between ch 710000 and ch 120999, and was it sold new anywhere but in Sweden, then your car should be equipped Zenith-Stromberg 175CD 2SE 4156.
Does your car have a chassis number between ch 545500 and 120999, and was it sold new in Sweden, then your car should be equipped with a Zenith-Stromberg 175CD 2SE 4141.

To be absolutely sure which carburettor is currently installed on your car you will have to open the bonnet and take a look at the metal tag that is riveted to your carburettor. It may differ from what is supposed to be on your car as someone may have changed your carburettor previously.

If the power listed is 75 kW (101 hp) then your car will most likely have a B200K equipped with a Solex 34-34 Cisac Z11 carburettor

Now have another look at your car registration and look at the last 6 numbers of your VIN (chassisnumber).

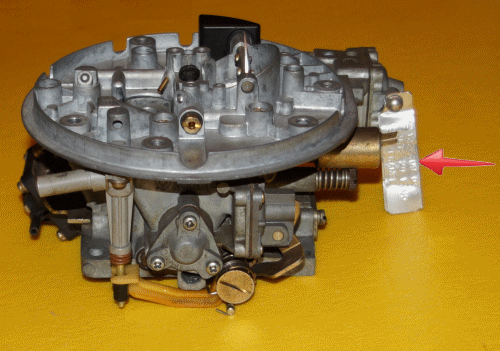

Does your car have a chassis number between ch 000000 and ch 120999, and was it sold new anywhere but in Sweden, then your car should be equipped with a Solex 34-34 Cisac Z11 labelled with part number 1326408. A glance at the metal label riveted to the carburettor itself is the only way to be sure.
Does your car have a chassis number between ch 121000 and ch 765000, and was it sold new anywhere but in Sweden, then your car should be equipped with a Solex 34-34 Cisac Z11 labelled with part number 1326407. A glance at the metal label riveted to the carburettor itself is the only way to be sure.
Does your car have a chassis number between ch 000000 and ch 7650000, and was it sold new in Switzerland or in Sweden, then your car should be equipped with a Solex 34-34 Cisac Z11 labelled with part number 1326409. A glance at the metal label riveted to the carburettor itself is the only way to be sure.

If the power listed is 80 kW (108 hp) then your car will most likely have a B200F from somewhere between 1987 and 1989 equipped with a Bosch LU Jetronic fuel injection system, and not a carburettor.
If the power listed is 82 kW (111 hp) then your car will most likely have a B200EA from somewhere between 1987 and 1989, or a B200E from somewhere between 1985 and 1989 equipped with a Bosch LE Jetronic fuel injection system, and not a carburetor.
If the power listed is 85 kW (115 hp) then your car will most likely have a B19E from somewhere between 1985 and 1986 equipped with a Bosch LE Jetronic fuel injection system, and not a carburettor.

Back to the 175 CD-2 SE
the Solex 34-34 Cisac Z11
the homepage

3) 1721 cc; the B172 engine

The size of your engine is 1721 cc, what we describe as the B172 engine.
The car registration will also list the engine power.

Does your car have a chassis number between ch 121000 and ch 240999, then your car should be equipped with a Solex 28-34 Cisac Z10 REN 857.

Does your car have a chassis number between ch 241000 and ch 765000, then your car should be equipped with a Solex 28-34 Cisac Z10 REN 894.

To be absolutely sure which carburettor is currently installed on your car you will have to open the bonnet and take a look at the label that is affixed to the carburettor. It may differ from what is supposed to be on your car as someone may have changed your carburettor previously.

In case there is no longer a label attached to your carburettor, don’t worry as our specialists will be able to identify the carburettor when it is pulled apart.

Back to the Solex 28-34 Cisac Z10
the homepage
